Solicitud
The installation cables are used for telephone and signal transmission and suitable for permanent installation on and under plaster in dry and damp rooms and for permanent installation on external walls. They are designed to handle low frequency analogue or digital signals for flexible installation.
Normas
• DIN VDE 0815

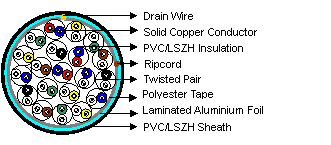

Construcción
Conductores
Solid annealed bare copper sized 0.6/0.8mm as per VDE 0295/IEC 60228 Class 1
Aislamiento
PVC YI1 type to DIN VDE 0207-4. LSZH compound can be offered as option
Pares trenzados
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk
Elemento de cableado
Twisted Pairs
Cable Troncal Asamblea
The twisted pairs are stranded to cable core in layers
Envasado básico
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to
sheathing.
Pantalla
Laminated aluminium foil is provided for fully enclosing the core with an overlap
Vaina
PVC YM1 type to DIN VDE 0207-5. LSZH sheath can be offered as option
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Drain Wire (optional)
Drain wire with a diameter of 0.4mm is provided in cables up to 10 pairs. Drain wire with a diameter of 0.6mm
is provided in cables with more than 10 pairs
Type Codes
| J- |
Installation Cable |
| Y |
Polyvinylchloride (PVC) |
| H |
Low Smoke & Zero Halogen |
| (St) |
Static Shield |
| Lg |
Stranded in layers |
Propiedades eléctricas
* In Cables up to 4 pairs 120nF/km
Propiedades mecánicas y térmicas
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Código de color
In 2 pair- cables:
Pair 1: a-wire red b-wire black
Pair 2: a-wire white b-wire yellow
In cables with 4 and more pairs:
a-wire of the 1st pair in each layer red, in all other pairs white
b-wire blue, yellow, green, brown, black in repeated sequence counting direction from the outside to the inside.
Dimensiones y peso
VDE CODE: J-Y(St)Y …x2x0.6/0.8 Lg
| Código de cable |
Número de pares |
Espesor nominal de aislamiento
mm |
Espesor nominal de la vaina
mm |
Diámetro nominal global
mm |
Peso nominal
kg/km |
| 0.6mm Conductor, 1.2mm Insulated Wire |
T815J-Y(St)Y-Lg-1P06 |
1 |
0.3 |
1.0 |
4.8 |
30 |
T815J-Y(St)Y-Lg-2P06 |
2 |
0.3 |
1.0 |
5.0 |
40 |
T815J-Y(St)Y-Lg-3P06 |
3 |
0.3 |
1.0 |
6.3 |
50 |
T815J-Y(St)Y-Lg-4P06 |
4 |
0.3 |
1.0 |
6.5 |
60 |
T815J-Y(St)Y-Lg-5P06 |
5 |
0.3 |
1.0 |
7.2 |
70 |
T815J-Y(St)Y-Lg-6P06 |
6 |
0.3 |
1.0 |
7.5 |
80 |
T815J-Y(St)Y-Lg-8P06 |
8 |
0.3 |
1.0 |
8.0 |
90 |
T815J-Y(St)Y-Lg-10P06 |
10 |
0.3 |
1.0 |
10.0 |
110 |
T815J-Y(St)Y-Lg-12P06 |
12 |
0.3 |
1.0 |
10.2 |
130 |
T815J-Y(St)Y-Lg-14P06 |
14 |
0.3 |
1.0 |
10.5 |
145 |
T815J-Y(St)Y-Lg-16P06 |
16 |
0.3 |
1.0 |
11.0 |
160 |
T815J-Y(St)Y-Lg-20P06 |
20 |
0.3 |
1.0 |
12.0 |
190 |
| T815J-Y(St)Y-Lg-24P06 |
24 |
0.3 |
1.0 |
13.0 |
220 |
| T815J-Y(St)Y-Lg-30P06 |
30 |
0.3 |
1.2 |
14.0 |
280 |
| T815J-Y(St)Y-Lg-40P06 |
40 |
0.3 |
1.2 |
15.0 |
350 |
| T815J-Y(St)Y-Lg-50P06 |
50 |
0.3 |
1.2 |
17.0 |
430 |
| T815J-Y(St)Y-Lg-60P06 |
60 |
0.3 |
1.2 |
19.0 |
500 |
| T815J-Y(St)Y-Lg-80P06 |
80 |
0.3 |
1.4 |
21.0 |
640 |
| T815J-Y(St)Y-Lg-100P06 |
100 |
0.3 |
1.4 |
24.0 |
850 |
0.8mm Conductor,1.6mm Insulated Wire |
| T815J-Y(St)Y-Lg-1P08 |
1 |
0.4 |
1.0 |
6.0 |
40 |
| T815J-Y(St)Y-Lg-2P08 |
2 |
0.4 |
1.0 |
7.0 |
60 |
| T815J-Y(St)Y-Lg-3P08 |
3 |
0.4 |
1.0 |
8.5 |
80 |
| T815J-Y(St)Y-Lg-4P08 |
4 |
0.4 |
1.0 |
9.0 |
100 |
| T815J-Y(St)Y-Lg-5P08 |
5 |
0.4 |
1.0 |
9.5 |
120 |
| T815J-Y(St)Y-Lg-6P08 |
6 |
0.4 |
1.0 |
11.0 |
140 |
| T815J-Y(St)Y-Lg-8P08 |
8 |
0.4 |
1.0 |
11.5 |
170 |
| T815J-Y(St)Y-Lg-10P08 |
10 |
0.4 |
1.2 |
13.2 |
220 |
| T815J-Y(St)Y-Lg-12P08 |
12 |
0.4 |
1.2 |
14.2 |
250 |
| T815J-Y(St)Y-Lg-14P08 |
14 |
0.4 |
1.2 |
15.0 |
280 |
| T815J-Y(St)Y-Lg-16P08 |
16 |
0.4 |
1.2 |
16.0 |
320 |
| T815J-Y(St)Y-Lg-20P08 |
20 |
0.4 |
1.2 |
17.0 |
380 |
| T815J-Y(St)Y-Lg-24P08 |
24 |
0.4 |
1.4 |
19.0 |
460 |
| T815J-Y(St)Y-Lg-30P08 |
30 |
0.4 |
1.4 |
20.8 |
560 |
| T815J-Y(St)Y-Lg-40P08 |
40 |
0.4 |
1.4 |
23.0 |
710 |
| T815J-Y(St)Y-Lg-50P08 |
50 |
0.4 |
1.6 |
26.0 |
900 |
| T815J-Y(St)Y-Lg-60P08 |
60 |
0.4 |
1.6 |
28.0 |
1050 |
| T815J-Y(St)Y-Lg-80P08 |
80 |
0.4 |
1.8 |
31.5 |
1400 |
| T815J-Y(St)Y-Lg-100P08 |
100 |
0.4 |
2.0 |
33.0 |
1750 |
VDE CODE: J-H(St)H …x2x0.6/0.8 Lg
| Código de cable |
Número de pares |
Espesor nominal de aislamiento
mm |
Espesor nominal de la vaina
mm |
Diámetro nominal global
mm |
Peso nominal
kg/km |
| 0.6mm Conductor, 1.2mm Insulated Wire |
T815J-H(St)H-Lg-2P06 |
2 |
0.3 |
1.0 |
8.0 |
65 |
T815J-H(St)H-Lg-4P06 |
4 |
0.3 |
1.0 |
10.0 |
100 |
T815J-H(St)H-Lg-6P06 |
6 |
0.3 |
1.0 |
11.0 |
117 |
T815J-H(St)H-Lg-10P06 |
10 |
0.3 |
1.0 |
12.0 |
155 |
T815J-H(St)H-Lg-20P06 |
20 |
0.3 |
1.0 |
15.0 |
270 |
T815J-H(St)H-Lg-30P06 |
30 |
0.3 |
1.2 |
17.0 |
322 |
T815J-H(St)H-Lg-40P06 |
40 |
0.3 |
1.2 |
18.0 |
408 |
T815J-H(St)H-Lg-50P06 |
50 |
0.3 |
1.2 |
20.0 |
491 |
T815J-H(St)H-Lg-60P06 |
60 |
0.3 |
1.2 |
21.0 |
573 |
T815J-H(St)H-Lg-80P06 |
80 |
0.3 |
1.4 |
24.0 |
756 |
T815J-H(St)H-Lg-100P06 |
100 |
0.3 |
1.4 |
27.0 |
917 |
| 0.8mm Conductor,1.6mm Insulated Wire |
| T815J-H(St)H-Lg-1P08 |
2 |
0.4 |
1.0 |
9.0 |
77 |
T815J-H(St)H-Lg-4P08 |
4 |
0.4 |
1.0 |
11.0 |
135 |
T815J-H(St)H-Lg-6P08 |
6 |
0.4 |
1.0 |
12.0 |
165 |
T815J-H(St)H-Lg-10P08 |
10 |
0.4 |
1.2 |
15.0 |
250 |
T815J-H(St)H-Lg-20P08 |
20 |
0.4 |
1.2 |
19.0 |
420 |
T815J-H(St)H-Lg-30P08 |
30 |
0.4 |
1.4 |
22.0 |
620 |
T815J-H(St)H-Lg-40P08 |
40 |
0.4 |
1.4 |
26.0 |
850 |
T815J-H(St)H-Lg-50P08 |
50 |
0.4 |
1.6 |
28.0 |
1000 |
T815J-H(St)H-Lg-60P08 |
60 |
0.4 |
1.6 |
30.0 |
1150 |
T815J-H(St)H-Lg-80P08 |
80 |
0.4 |
1.8 |
34.0 |
1550 |
T815J-H(St)H-Lg-100P08 |
100 |
0.4 |
2.0 |
38.0 |
1850 |
